Cap embroidery can be challenging. A curved crown, stiff centre seam or flexible back panel can quickly turn a clean design into puckering, broken needles, poor registration or an oval badge. Most cap embroidery problems come down to four things: using the wrong frame for the embroidery position, insufficient backing, uneven clamping or a design that has not been digitised specifically for caps.
The quick answer is to use a compatible cap frame or clamp, support the fabric with a firm tear-away backing, secure the cap without stretching it and trace the complete design before sewing. For names, logos and curved designs on the back of a cap, a dedicated back-of-cap clamp can make positioning significantly easier.
What Is the Best Backing for Cap Embroidery?
For most cap embroidery, the best starting point is a crisp, stable tear-away backing. A structured cap already contains a stiff material behind its front panels, so it usually needs less additional support. An unstructured cap has little or no built-in support, which makes the backing much more important.
As a general guide:
- Use one layer of medium or firm tear-away backing for a structured cap with a light-to-medium design.
- Use a heavier backing or two lighter layers for an unstructured cap.
- Add more support for large badges, wide satin borders and designs containing heavy fill stitching.
- Make sure the backing covers the complete embroidery area rather than only the centre of the design.
- Use a water-soluble topping only when the cap has a textured or napped surface that could allow stitches to sink into the fabric.
ETC Strong & Stiff Backing combines the convenient removal of a tear-away with additional strength and support. It is available in 60 g and 90 g weights, with two pieces cross-laid recommended for maximum stability.
For lighter designs, ETC Medium Tear Away Backing provides balanced support and clean multidirectional removal.
The aim is to use enough backing to control the cap without adding so much bulk that the cap becomes difficult to frame or sits too far above the needle plate.
View our full tear away backing range here:

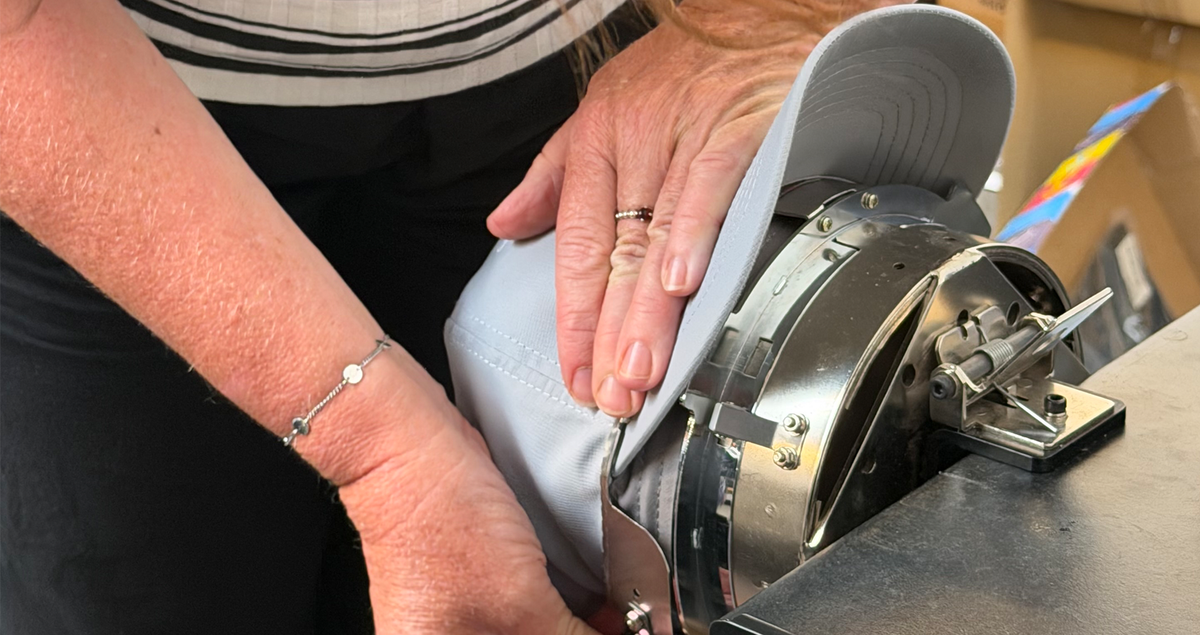

How to Use a Cap Clamp
The exact method will depend on your machine and clamp model. Always follow the installation and clearance instructions supplied by the manufacturer. The following process provides a reliable starting point for most commercial cap systems.
1. Confirm the clamp is compatible: Match the clamp to your embroidery machine and installed cap driver. Check the available embroidery window and make sure the design will fit within it.
2. Secure the hooping gauge: Attach the gauge or framing jig firmly to a stable workbench. Position it at a comfortable height so that you can load the cap evenly without pulling it towards one side.
3. Prepare the cap: Remove any cardboard packaging from inside the cap. Open the rear fastening and pull the sweatband away from the embroidery area. If the centre seam is extremely stiff, gently steaming it can make framing easier. Check that the cap material is suitable for steaming before doing this.
4. Position the backing: Cut a piece of backing large enough to support the complete embroidery window. For a front-cap frame, curve the backing naturally around the frame. For a back-of-cap clamp, position it flat and square behind the rear panel. Use the clamp’s backing clips where provided.
5. Centre the embroidery area: Align the centre seam or placement mark with the centring points on the frame. When framing the front of a cap, keep the bill firmly against the bill stop. Do not allow the bill to climb over the stop, as this can change the angle and position of the design.
6. Close the clamp evenly: Close the strap, band or locking lever so that the fabric is smooth and controlled. The cap should be held securely, but it should not be stretched. Pulling the crown drum-tight can distort the finished embroidery when the cap is released.
7. Secure loose material: Use the frame clips to keep loose crown fabric away from the needle and reduce movement during sewing. Make sure all clips remain outside the embroidery area.
8. Attach the frame to the machine: Connect every driver clip or locking point and confirm that the frame is seated correctly. Never force a cap frame onto an incompatible driver.
9. Select the correct machine setting: Choose the correct cap frame in the machine’s frame-selection menu. Depending on the machine, the embroidery design may need to be rotated by 180 degrees.
10. Trace the design: Trace the complete design before starting. Check for clearance from the bill, seams, clips, frame and any closure hardware. This is also your final opportunity to confirm that the embroidery is centred and positioned at the correct height.
11. Run a test: Use a design digitised specifically for caps and begin at a conservative sewing speed. Watch the first section carefully for fabric movement, needle deflection or excessive cap bounce.
How Tight Should a Cap Clamp Be?
A cap clamp should be tight enough to prevent the fabric from moving, but not so tight that it stretches the crown or crushes the closure. The fabric should remain smooth against the sewing plane without bouncing each time the needle enters the cap. If the cap still moves after the clamp has been closed, do not simply apply more pressure. Check the backing, cap position, clip placement and frame compatibility first.
Which Cap Embroidery Clamp Is Best?
There is no single cap clamp that is best for every embroidery job. The right choice depends on where the design will be sewn and which cap driver is installed on the machine. For front-cap embroidery, a curved wide-angle cap frame supplied or approved by the machine manufacturer is usually the safest starting point. For names, logos and curved designs on the rear of a cap, the EMS Back of Cap Clamp available from ETC Supplies provides a dedicated embroidery window while allowing you to use an installed cap driver.
Large EMS Back of Cap Clamp
The Large EMS Back of Cap Clamp is designed for larger rear-cap embroidery areas. Its
upper and lower window frames allow the operator to position the back section of the cap for long curved designs or taller and wider logos. Features include:
- Simple installation onto a compatible cap driver
- Spring clips for holding the backing
- A single locking and clamping lever
- A large sewing window
- Centring points to make positioning easier
Machine compatibility must be confirmed before ordering. In particular, the Large EMS clamp product information states that it will not fit European Barudan machines.
Compact EMS Back of Cap Clamp
The Compact EMS Back of Cap Clamp provides a smaller window for more focused rear-cap placements.
It uses the same straightforward clamping principle, with backing clips, centring points and a single locking lever. Different versions are available for a selection of cap-driver types, so the exact machine and driver combination should always be checked.
The best option is therefore:
- A standard curved cap frame for most front-cap embroidery
- A large back-of-cap clamp for wide or tall rear designs
- A compact back-of-cap clamp for smaller names and logos
- A machine-specific frame whenever compatibility or clearance is uncertain
Why Does a Round Embroidered Badge Turn Oval?
A round badge can turn oval because embroidery creates physical tension in both the thread and the fabric. As stitches form, thread tension pulls a shape inward across the direction of the stitches. At the same time, stitch build-up can push the ends of a shape outward. This is commonly known as push and pull distortion. The effect can become more pronounced on a cap because the fabric is curved and suspended above the needle plate. Other possible causes include:
- Backing that is too light
- An unstructured cap moving inside the frame
- Uneven clamp pressure
- Excessive stitch density
- Insufficient underlay
- Poor stitch direction
- Embroidery running across a stiff centre seam
- A file digitised for a flat garment rather than a cap
- Incorrect embroidery sequence
- Excessive machine speed or thread tension
If the badge is consistently oval in the same direction on every test, the digitising settings are likely to be contributing. If its shape changes between caps, inconsistent framing or fabric movement is more likely.
How to Fix an Oval Embroidered Badge
Work through the problem in a controlled order rather than changing several settings at once.
1. Measure the stitched badge: Check whether the design is too tall, too wide or distorted only where it crosses a seam. Comparing the stitched dimensions with the original design will help identify the direction of the distortion.
2. Test on the same cap style: Different cap constructions can produce very different results. Use the same cap style, backing and thread while troubleshooting so that each change can be evaluated properly.
3. Check the clamp and backing first: Confirm that the cap is centred, every driver clip is engaged and the backing supports the entire design area. If the cap is bouncing or lifting under the needle, improve the backing and clip placement before altering the embroidery file.
4. Sew from the centre out: Cap embroidery designs should generally progress from the centre towards the outside edges. This helps manage the centre seam and moves distortion away from the middle of the design.
5. Review the underlay and stitch direction: Edge-run and zigzag underlay can help anchor the fabric before the top stitching is added. Avoid running a large fill parallel to a stiff front centre seam. A slight diagonal stitch angle can often produce a more stable result.
6. Check the stitch density: Adding more stitches does not always improve coverage. Excessive density can increase fabric distortion, thread breaks and needle deflection.
7. Adjust pull compensation: Pull compensation adds controlled width to an embroidery object to account for the way thread tension pulls the stitched shape inward.There is no universal compensation setting. Adjust it gradually and test the design on the actual cap material.
8. Sew outlines and arched lettering later: Where possible, complete fill areas before sewing fine outlines or arched lettering. This reduces the risk of later stitching pulling those details out of alignment.
Do not immediately stretch or squash the original artwork to correct an oval stitch-out. Stabilise the cap and backing first, then make a measured adjustment to the embroidery file.
Cap Embroidery Troubleshooting Tips
If The cap is puckering: Possible causes include insufficient backing, excessive stitch density, uneven clamping or an unsuitable fill direction. Try a firmer backing, reframe the cap without stretching it and review the design’s density and underlay.
The cap is bouncing or flagging: Flagging happens when the cap lifts and drops with the needle. Make sure the backing covers the full sewing area, secure loose fabric with the correct clips and check that the frame is properly connected to the driver. Driver height and needle-plate clearance should be checked according to the machine manual.
Needles are breaking near the centre seam: A stiff centre seam contains several layers that can deflect the needle. Fit the sharp needle type recommended for your machine, reduce the test speed and avoid unnecessary repeated needle penetrations directly into the seam.
The thread keeps breaking: Replace the needle and inspect the thread path, tension system and needle plate for damage or burrs. Excessive density, excessive tension and a poor stitch sequence can also cause repeated thread breaks.
The outline does not register: Poor registration is commonly caused by fabric movement or an outline being sewn before the main design has stabilised the fabric. Improve the backing, complete nearby elements before moving across the design and sew fine outlines later in the sequence.
The design is too close to the bill: Reseat the cap against the bill stop, confirm the correct frame has been selected and trace the design again. Raise the design if necessary, but remain within the usable sewing field.
Small text fills in: The lettering may be too small for the chosen thread and needle, or it may contain too much density. Increase the letter size, simplify the detail, reduce the density or ask for the lettering to be digitised specifically for cap embroidery.
The backing tears while sewing: The backing may be too light or may have been weakened by excessive adhesive or concentrated needle penetrations. Use a stronger grade, replace damaged backing and review any extremely dense areas in the design.
The clamp leaves marks: Reduce the clamping pressure and check that the clamp is not closing directly over a buckle, snap or other piece of hardware.
Find the Right Cap Clamp and Backing
Reliable cap embroidery starts with the right combination of machine, cap driver, frame, backing and digitising.
If you are planning rear-cap names, wide curved text or taller back designs, the EMS Back of Cap Clamp provides a dedicated clamping window while allowing your cap driver to remain installed.
Before ordering, contact ETC Supplies with your machine model and cap-driver details. Our team can help you identify the correct clamp and backing for your application.
